Our Equipment

CQE offers a range of modern drill rigs fitted with the latest hands-free technology.

WEI 50-DS

Number of Rigs:1
Truck Type:Trailer Mounted
Rig Engine:DEUTZ TCD V064V
Top Drive:2 Motor High Torque Tilting Head
Pull Back Capacity:50t
Main Winch Line Capacity:3.5t
Mast Clearance:11m
Loadsafe:WEI Pipe Presenter
Rotational Guard:Fitted
Mud Pumps:2 x Tulsa TT-560 500gpm each 550Hp
Drill Pipe:Premium 4 inch GP XT-39

Drilling Capacities

26″ Hole500m
24″ Hole800m
12 1/4″ Hole
8 1/2″ Hole		1,500m
2,500m
6 1/8″ Hole 3,000m

Kleint VH-84

Number of Rigs:1
Truck Type:Trailer Mounted
Rig Engine:Caterpillar C-13
Top Drive:2 Motor High Torque Tilting Head
Pull Back Capacity:38t
Main Winch Line Capacity:3t
Mast Clearance:10m
Rod Loader:Kleint Pipe Presenter
Rotational GuardFitted
Remote Emergency Stop

Custom Dump Mast – to allow for additional clearance

Drilling Capacities

26″ Hole500m
24″ Hole600m
17 1/2″ Hole750m
12 1/4 Hole1,000m
8 1/2 Hole1,500m

Kleint VH-80

Number of Rigs:1
Truck Type:Volvo 8×4
Rig Engine:Caterpillar C9
Top Drive:Single speed reduction
Pull Back Capacity:40t
Aux Winch Line Capacity:10t Closed
Aux Winch Line Capacity: 2t Open
Mast Clearance:12m
Rod Loader:Kleint Pipe Presenter
Rotational Guard:Fitted
Mast Dump
FMC Bean Pump

Drilling Capacities

Large Diameter
26″ Hole450m
24″ Hole500m
8 5/8″ Drill Pipe

Schramm T-685

Number of Rigs:3
Truck Type:Volvo 8×4
Rig Engine:Cummins QSM11
Top Drive:Single speed reduction
Pull Back Capacity:33t
Main Winch Line Capacity:5.5t
Auxiliary Winch:2.2t
Mast Clearance:12m
Rod Loader:Drillman
Rotational GuardFitted
Mast Dump
Injection Pump

Drilling Capacities

Large Diameter
26″ Hole400m
24″ Hole450m
8 5/8″Drill pipe

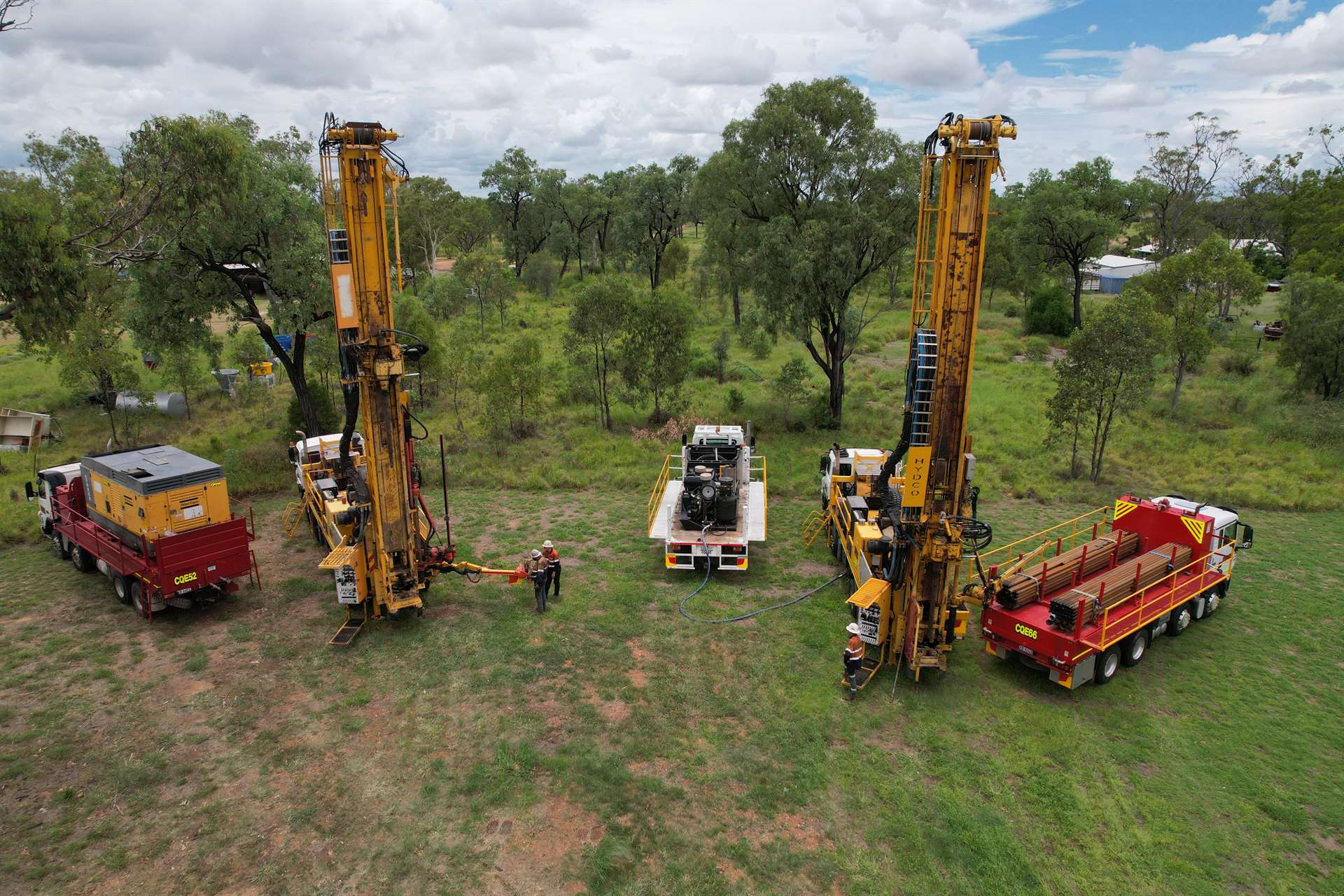

XDR 1200H

Number of Rigs:2
Truck Type:Tatra 8×8
Rig Engine:Cummins 8.3L
Top Drive:2 speed (diamond capabilities)
Pull Back Capacity:21.5t
Main Winch Line Capacity:17t
Mast Clearance:12m
Wileline Winch Capacity:2500m
Rod Loader:KL Remote Controlled
Rotational Guard:Fitted
Mast Dump:2.5m
FMC Triplex Bean Pump
Handsfree Maker/Breaker

Drilling Capacities

Open Hole1,000m
4c Core800m
8c Core500m
NQ Core2,000m
HQ Core1,200m
PQ Core900m
Rotary Mud1,000m

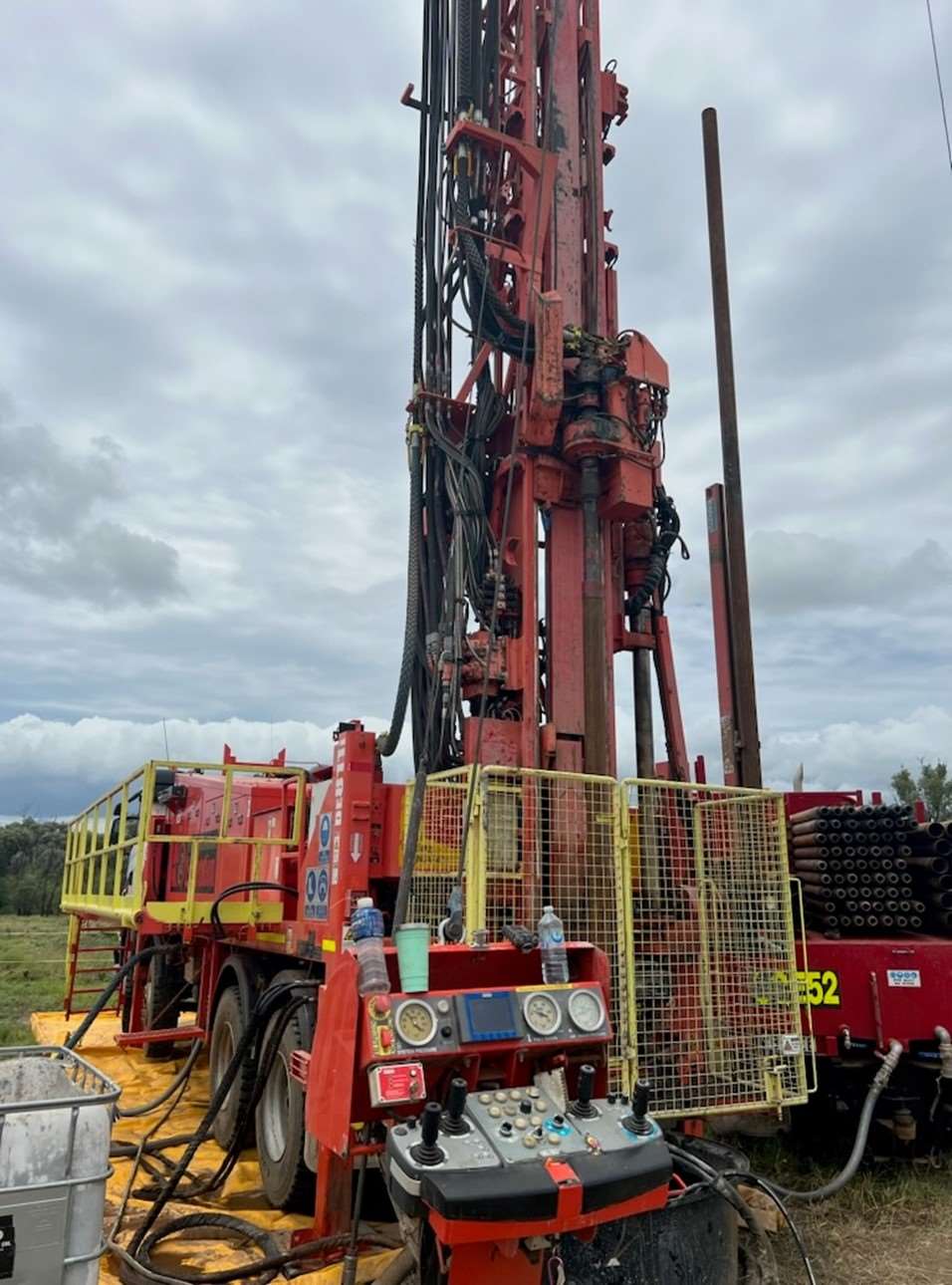

Sandvik DE811i

Number of Rigs:2
Truck Type:Scania 8×4
Rig Engine:Cummins QSK8.3l
Top Drive:Sandvik 811 2 speed
Pull Back Capacity:9t
Main Winch Line Capacity:6.5t
Mast Clearance:7.0m
Utility Winch Rating:250kg
Wireline Winch Capacity:1,000m
Rod Loader:Sandvik KL Remote CTS Remote Controlled
Rotational GuardFitted
Remote Emergency Stop
Custom Dump Mast – to allow for additional clearance

Drilling Capacities

Open Hole600m
100mm Core400m
HQ Core750m
PQ Core500m
Rotary Mud600m

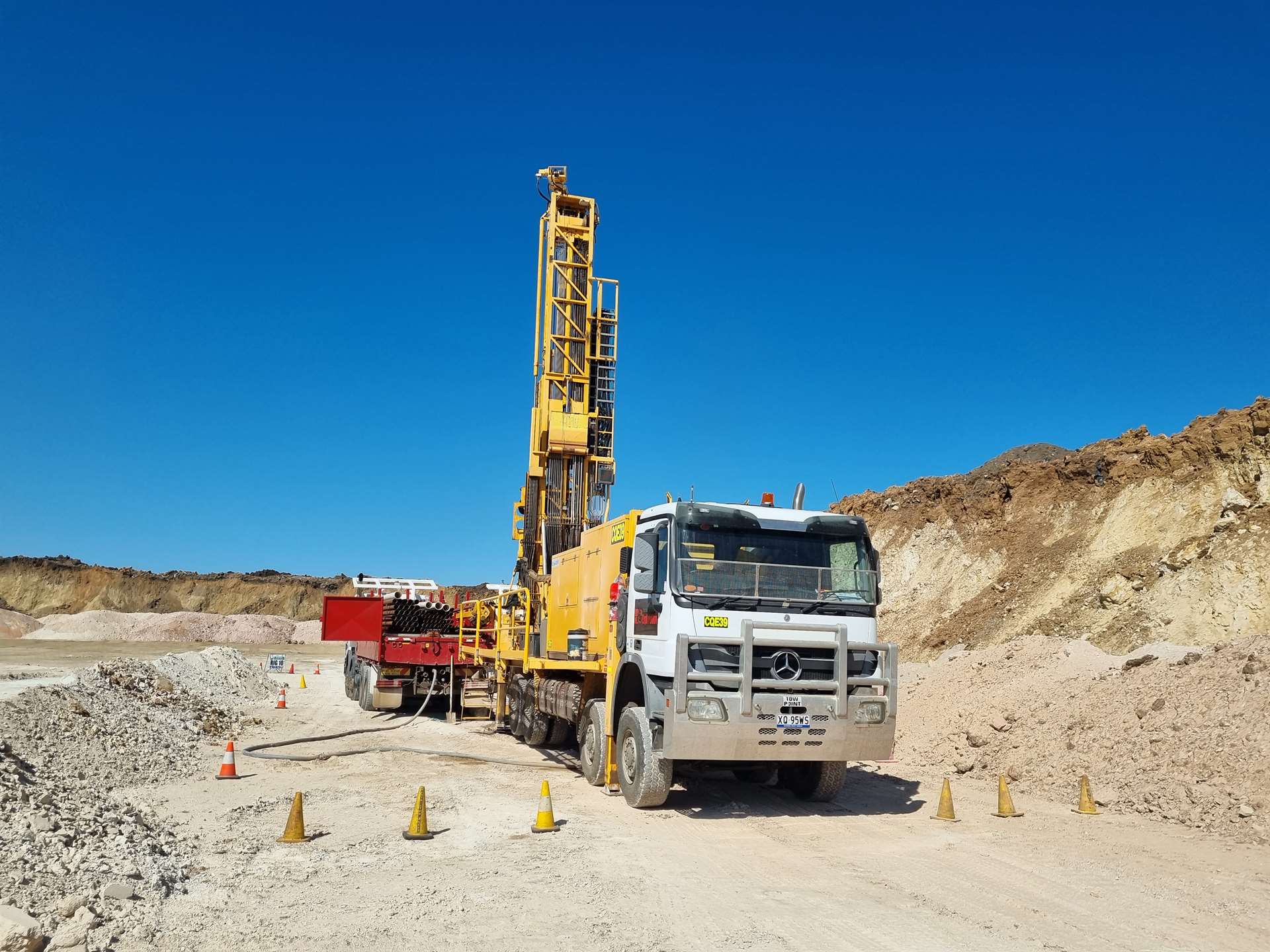

Hydrapower HP-850

Number of Rigs:3
Truck Type:Mercedes8x8
Rig Engine:Cummins 8.3L
Top Drive:4speed (diamond capabilities)
Pull Back Capacity:15t
Main Winch Line Capacity:10t
Mast Clearance:8.5m
Wireline Winch Capacity:1000m
Rod Loader:KWL Remote Controlled
Rotational Guard:Fitted
On-board air compressor
FMC Triplex Bean Pump
Handsfree Maker/Breaker

Drilling Capacities

Open Hole700m
100mm Core400m
HQ Core750m
PQ Core500m
Rotary Mud700m

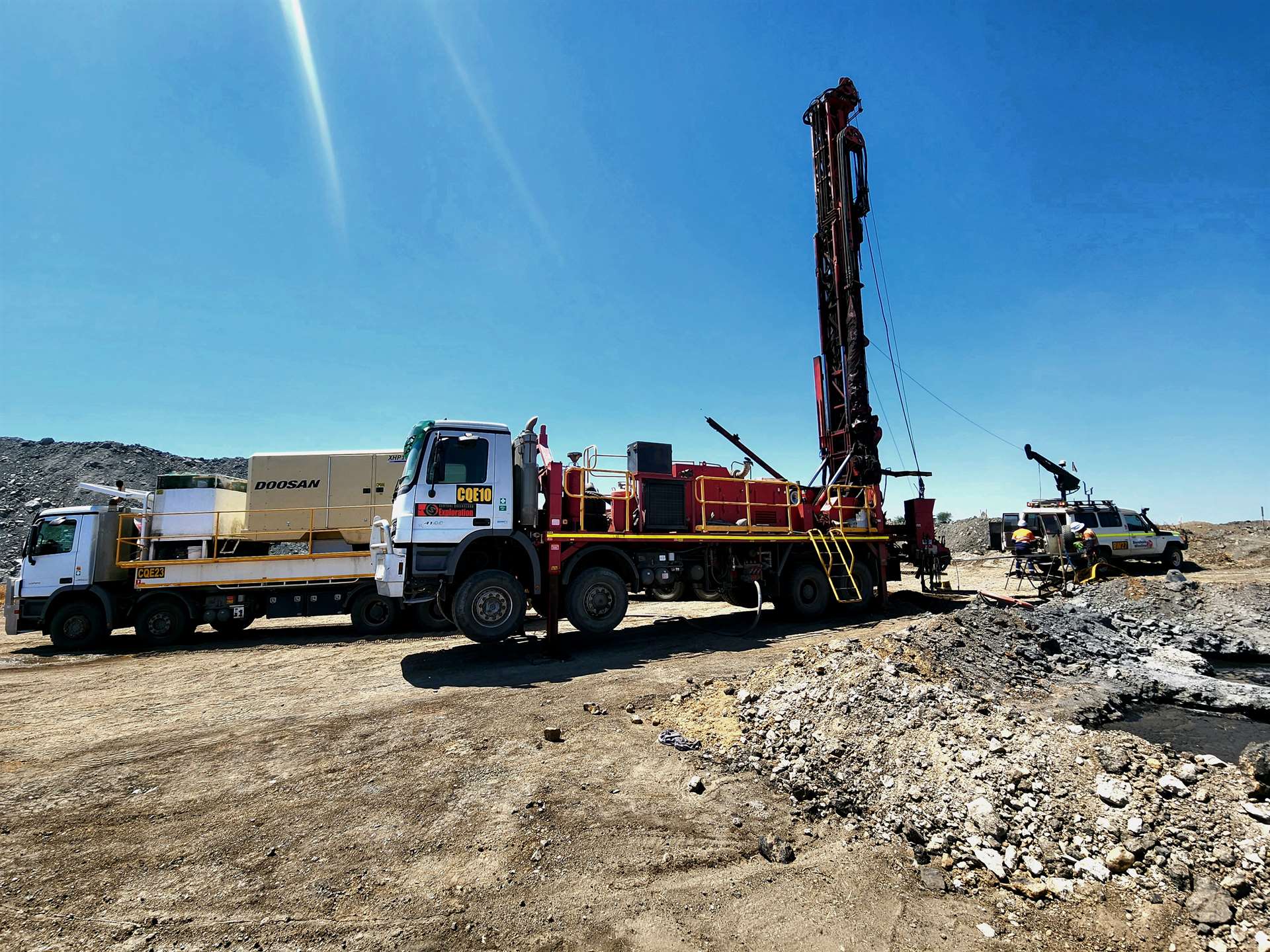

KWL 1600H

Number of Rigs:2
Truck Type:Mercedes 8×8
Rig Engine:CAT C13
Top Drive:KWL 2 speed
Pull Back Capacity:22t
Main Winch Line Capacity:18t
Mast Clearance:7.5m
Wireline Winch Capacity:2,800m
Rod Loader:KWL Remote Controlled
Rotational Guard:Fitted
Remote Emergency Stop
FMC Triplex Bean Pump
Handsfree Maker/Breaker

Drilling Capacities

Open Hole900m
100mm Core550m
HQ Core1350m
PQ Core900m
Rotary Mud900m

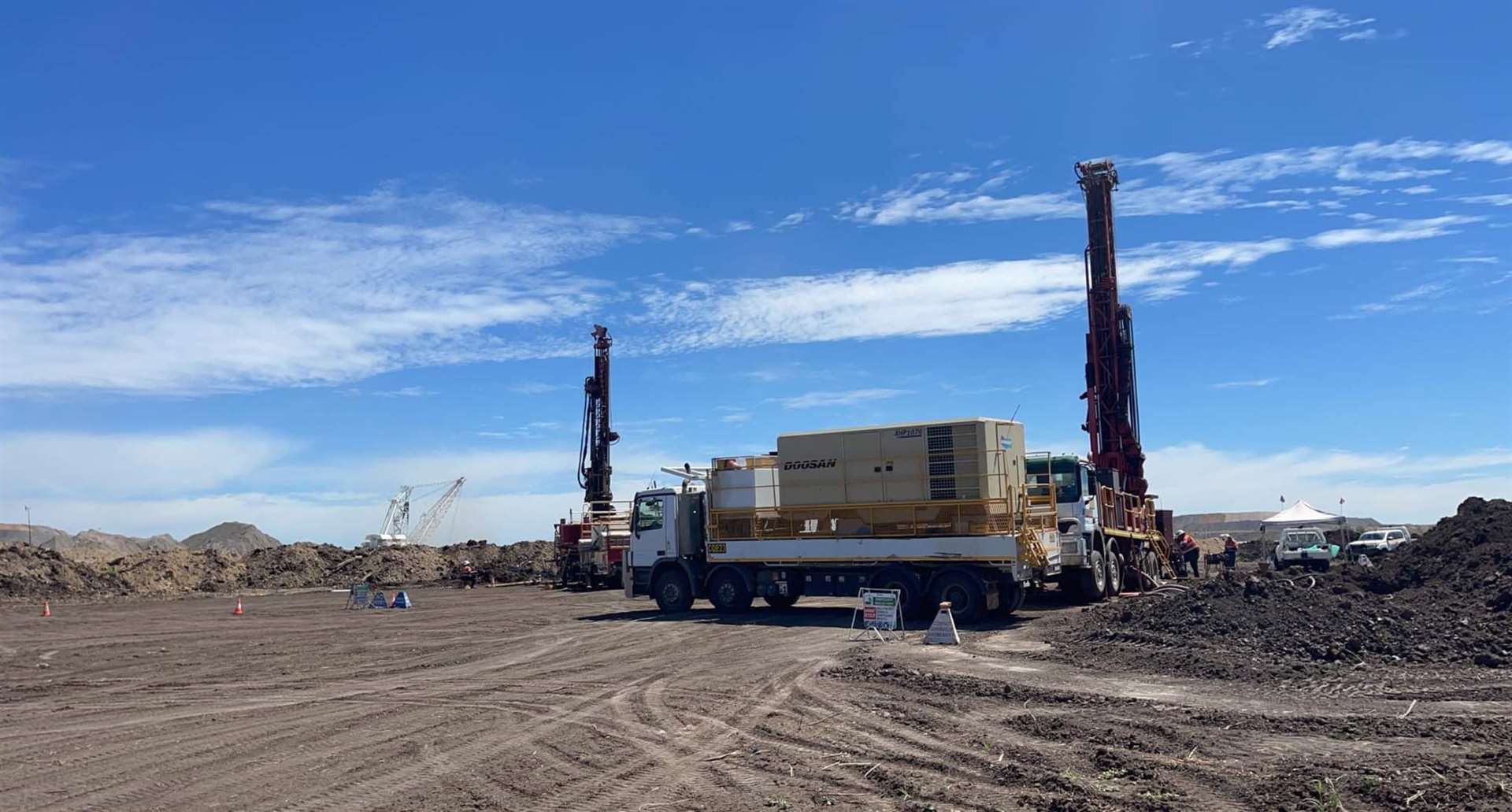

Schramm T450WS

Number of Rigs:2
Truck Type:Volvo 8×4
Rig Engine:Cummins QSK19
Rotary Drive:Schramm Single Reduction Speed
Pull Back Capacity:15t
Main Winch Line Capacity:6t
Mast Clearance:9.9m
Utility Winch Rating:750kg
Rod Loader:Foremost Remote Controlled
Rotational Guard:Fitted
On-board Mud Pump:5X8
On-board Compressor:Sullair
Handsfree Maker/Breaker

Drilling Capacities

Open Hole550m
100mm Core400m
200mm Core250m
Rotary Mud550m

XDR 44 Workover Rig

Number of Rigs:1
Truck Type:Peterbuilt 6×4
Rig Engine:Caterpillar-15
Pull Back Capacity:44,000lbs
Utility Winch Line Capacity:1.0t
Mast Clearance:14m
Mud Pump:FMC Triplex 100gpm
Test Pump:Bertolini 5000psi
Flushby Capable

Workover Capacities

Workover Rig with Flushby capacity. Up to 3m clearance under work platform.
Auxiliary equipment includes casing and tubing tongs, 3k, API Annular BOP, and associated equipment.

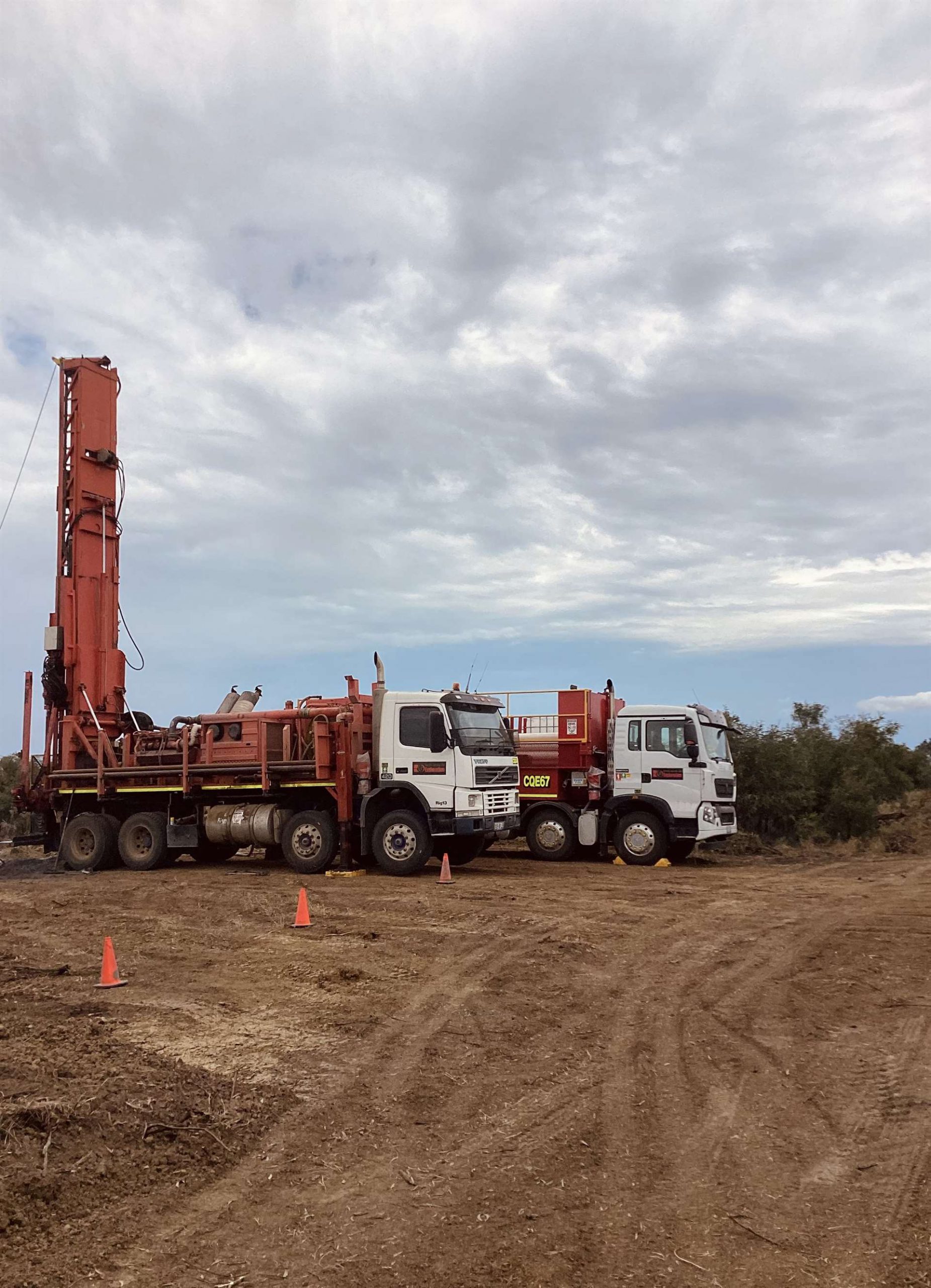

SCHRAMM T660

Number of Rigs:1
Truck Type:Volvo 8×4
Rig Engine:Mercedes V12
Top Drive:Single speed reduction
Pull Back Capacity:20t
Main Winch Line Capacity:2.5t
Mast Clearance:10.9m
Rod Loader:KL Remote Controlled
Rotational Guard:Fitted
Mast Dump
FMC Bean Pump
On-board air compressor
On-board rod bin
Handsfree Maker/Breaker

Drilling Capacities

Open Hole1000m
100mm Core500m
200mm Core300m
Rotary Mud1000m

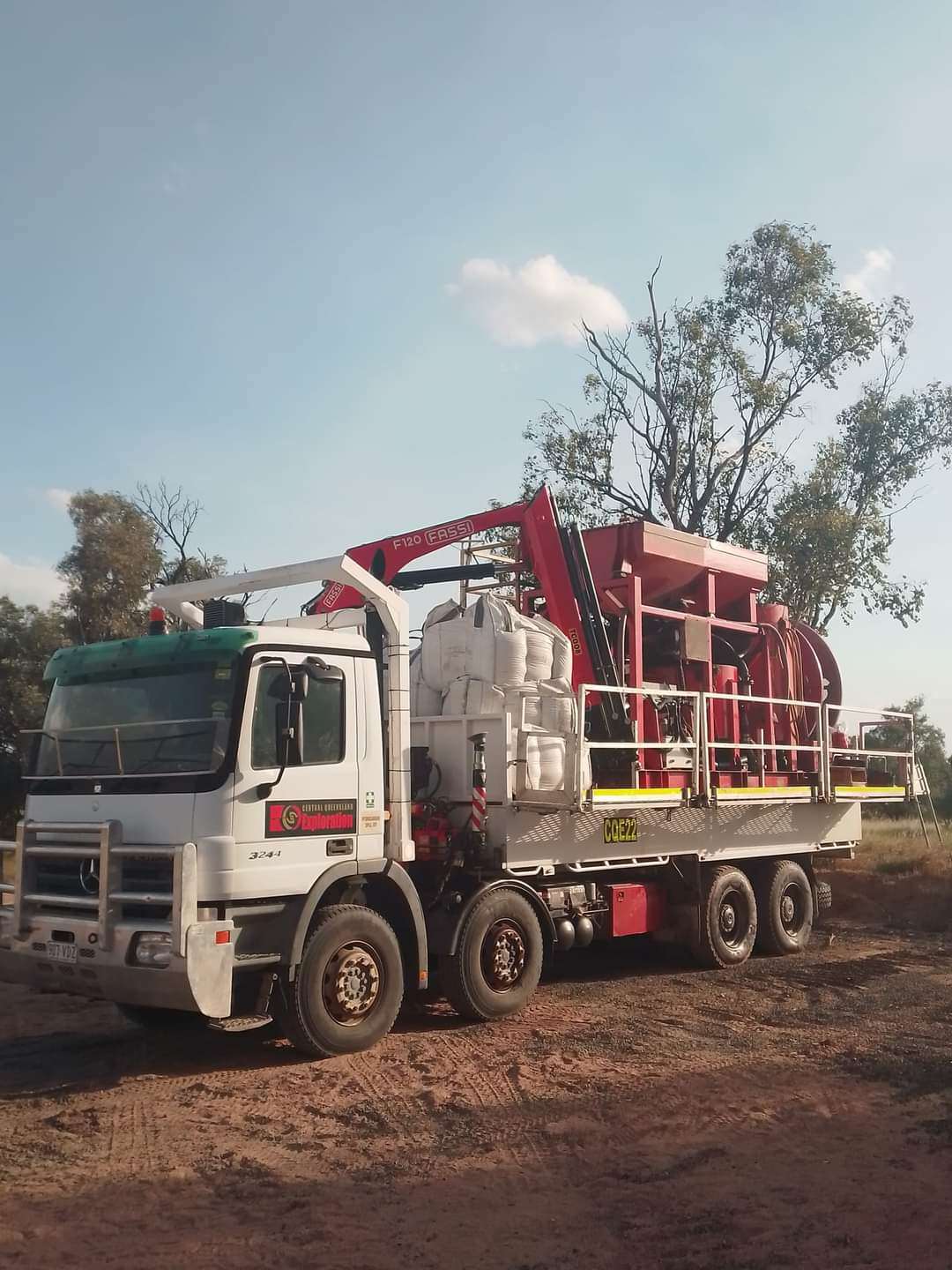

Drill Techniques GU700

Number of Rigs:2
Truck Type:Mercedes 8×4
Rig Engine:Cummins QSK8.3l
Cement Reel Capacity:600m
Cement Silo Capacity:2.4m3
Mixing Tank Capacity:700lt
Holding Tank Capacity:1,500lt
Bulk Tank Capacity:7,000lt
Fassi Crane Capacity:2,250kg
Designed to utilize 1ton cement bags

Drilling Capacities

Open Hole600m
100mm Hole600m
HQ Core Hole600m
PQ Core Hole600m
